PE Explorer Screenshots

PE Explorer hosts a wide array of tools and functionalities, making it impossible to showcase all of them on a single page. To provide you with an overview of its appearance, we have included just a few screenshots.

For a more comprehensive understanding of its capabilities, we recommend taking the PE Explorer Feature Tour. This guided tour will delve into the software's diverse features, giving you a detailed insight into its extensive toolset and functionality.

Export, Import, Delay Import Viewers

The Export, Import, and Delay Import Table viewers provide you with the ability to examine all the external functions utilized by the executable, and the results are categorized based on the DLL or library in which they are found. A particularly valuable feature is the Syntax Viewer, which showcases the calling syntax for known functions and enables you to expand the syntax database by adding your custom definitions.

Get Full Version

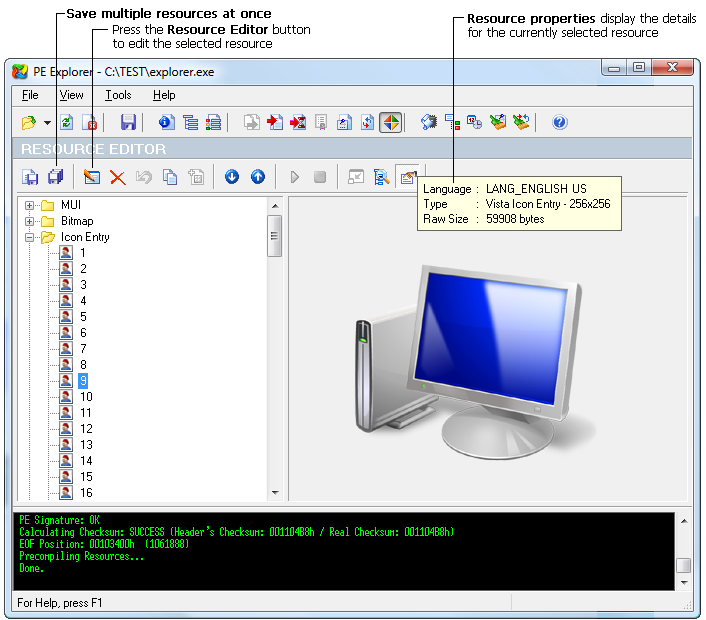

Resource Editor

The Resource Editor offers a thorough look at all of the resources (bitmaps, jpeg, png, icons, strings, etc) in the file, and allows you to make modifications without needing to recompile the source code.

Section Editor

Restoring the original values of sections' offsets to real data in the file is not an easy task. In many respects it depends on intuition and supposition, and is practically impossible to completely automate the given process. The Section Editor allows you to facilitate a solution to these problems.

Disassembler

PE Explorer Disassembler utilizes a qualitative algorithm designed to reconstruct the assembly language source code of target binary win32 PE files (EXE, DLL, OCX) with the highest degree of accuracy possible.

Name List to the right provides a list of labeled addresses (including conditional and unconditional branching destinations, function prologues, named data, and string references) by the disassembler, with the entry point clearly indicated. Labels can be renamed by pressing N (Edit | Rename Label).

The Strings tab provides a list of detected strings; you can further manipulate strings detection by using the toolbar, using menu items (Edit | Mark as String/Pascal String/Long Pascal String/Unicode), or pressing S, A, L, or U to activate each of them.

Searching through the strings within an executable file could be a way to get hints about the functionality of a program. With PE Explorer, you can try to fish out the strings that are present in the program, like messages, or something connecting to a URL, etc. When you are looking for leads in the form of text, the output of strings found in the executable gives you a good knowledge of what some of the functions and subroutines called by this binary are.

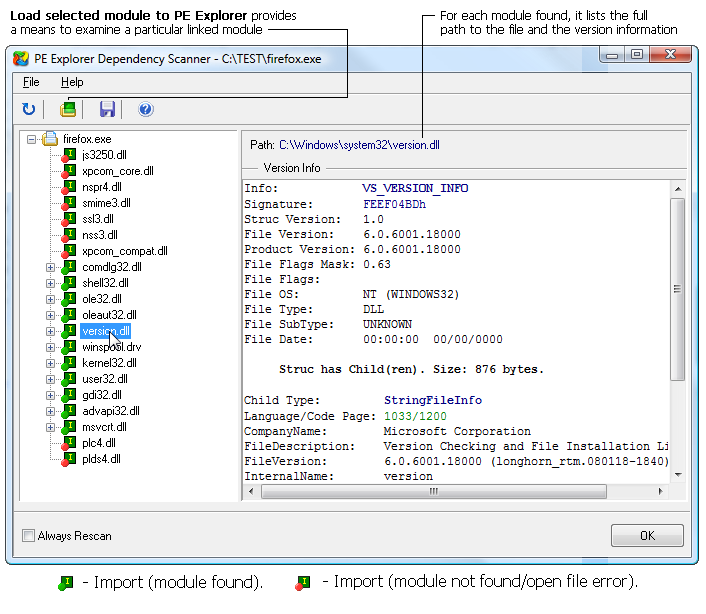

Dependency Scanner

Dependency Scanner displays a list of all the external DLLs the selected PE file depends on, and iteratively scans each of these files for its dependencies. The Dependency Scanner opens a second window and displays the dependencies on the left in a hierarchy, with version information on each of these files displayed in the right-hand pane as you click on them.
